Front shock absorber core two-drive.
The front shock absorber core two-drive means that the force is generated on two wheels ( front wheel drive, front and rear drive, rear drive) .
In the automobile drive system, two-drive is a common driving mode, it represents the power source of the vehicle and the number of driving wheels. Specifically, a two-drive system means that the vehicle's power is provided directly by two wheels, these wheels can be either front or rear, depending on the vehicle's design and drive configuration. This kind of drive is more common in automobiles, because it is relatively simple, low cost, and can meet most daily driving needs.
Front-drive: In this configuration, the engine is located at the front of the car and power is transmitted directly to the front wheels via the drivetrain, moving the vehicle forward. This type of drive is more common in small and medium-sized vehicles because of its compact structure, low cost, and can provide good fuel economy. However, the manoeuvrability and safety factor of the front drive are limited to some extent, especially at high speeds, may be understeer due to the forward center of gravity.
Rear-wheel drive: as opposed to the front drive, the engine and transmission system are located in the front of the vehicle, but the power is transferred to the rear wheels through the drive shaft, to make the rear-wheel drive vehicle forward. This type of drive generally performs better in handling and balance, because the weight is more evenly distributed between the front and rear axles, improves stability and handling performance.
In general, two-drive systems are widely used in various vehicle types due to their cost effectiveness and applicability. Whether front-drive or rear-drive, two-drive systems are designed to improve vehicle economy, reliability and practicality.

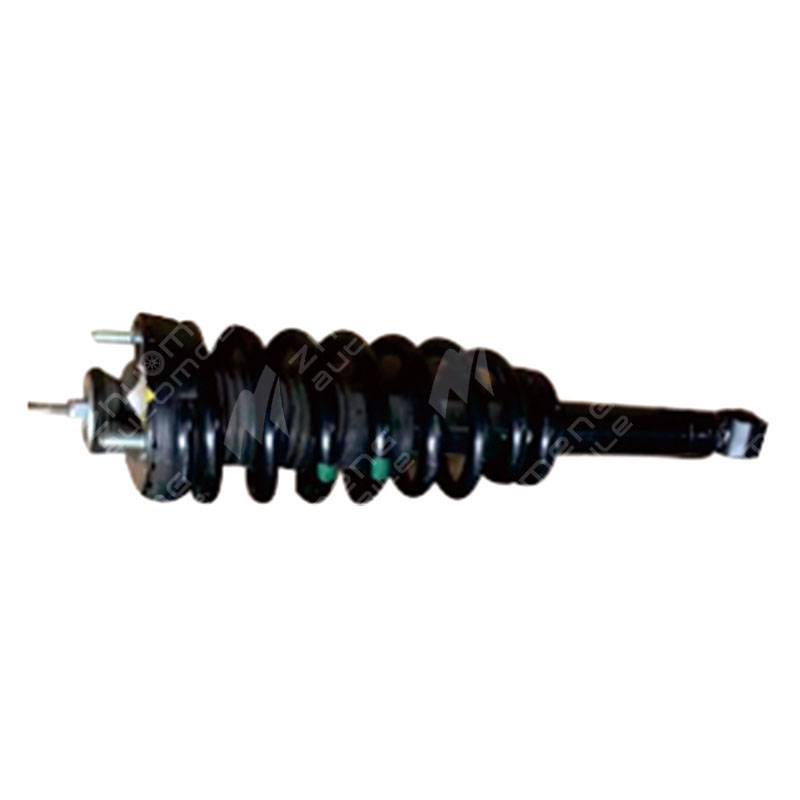

The main function of the front shock absorber core is to play a buffering role through the internal hydraulic device and liquid oil repeatedly through the narrow pores to form the damping force on the vibration thus reducing the impact of the vehicle bumping.
The front shock absorber core is the main part of the shock absorber, its working principle is based on the hydraulic device. When the vehicle encounters bumps, the liquid oil inside the shock absorber core flows repeatedly through the inner cavity and narrow pores, produces the friction between the liquid and the inner wall and the internal friction of liquid molecules, forms the damping force on the vibration, and plays a buffering role. This design helps to reduce the impact and vibration of the vehicle when driving on uneven roads, improve ride comfort and driving stability. The method of determining whether the shock absorber core is damaged includes checking for oil leakage and pressure reduction.
In addition, other components of the shock absorber such as top rubber, flat bearing, spring, buffer rubber and dust jacket, each assumes different functions, work together to ensure the effective operation of the shock absorber. top glue helps to reduce the impact of the spring in operation, flat bearing allows the shock absorber to turn with the wheel in steering, spring provides cushiering and support, buffer glue provides auxiliary support when the shock absorber is squeezed, dust jacket prevents dust from eroding the hydraulic part of the shock absorber core.
Front shock absorber mounting method
The installation method of front shock absorber mainly includes the following steps:
Prepare tools and equipment: Make sure you have the right tools, such as wrenches, sleeves, lifts and caliper jacks.
Remove the old shock absorber:
Loosen the wheel nuts in a diagonal sequence, but do not completely remove them.
Use a lift to lift the vehicle for easier handling.
Remove the wheels and may need to remove the brake subpump depending on the model.
Remove the retaining bolt on the arm and the retaining nut on the spring support arm.
Use a caliper jack to secure the shock absorber arm, open the engine hood, and unscrew the retaining nut on the body of the shock absorber.
Turn the jack to lift the shock absorber arm upward until the lower end of the shock absorber arm is separated from the front axle fixing place, then slowly remove the shock absorber, completely loosen the fixing nut of the upper body, and remove the shock absorber.
Install new shock absorber:
Secure the spring with a shock absorber spring remover.
Remove damaged shock absorber components and rubber guard.
Follow the steps of removal in reverse, that is, install the shock absorber first, and then fix the spring support arm and wheel.
Ensure that all connection parts are securely fastened and not loose, and apply anti-rust paint to the fastening parts.
Inspection after installation: check whether there is interference in the oil pipe and other lines to ensure the smooth running of the vehicle.
These steps ensure the correct and safe installation of the front shock absorber, while also taking into account ease of operation and safety.
