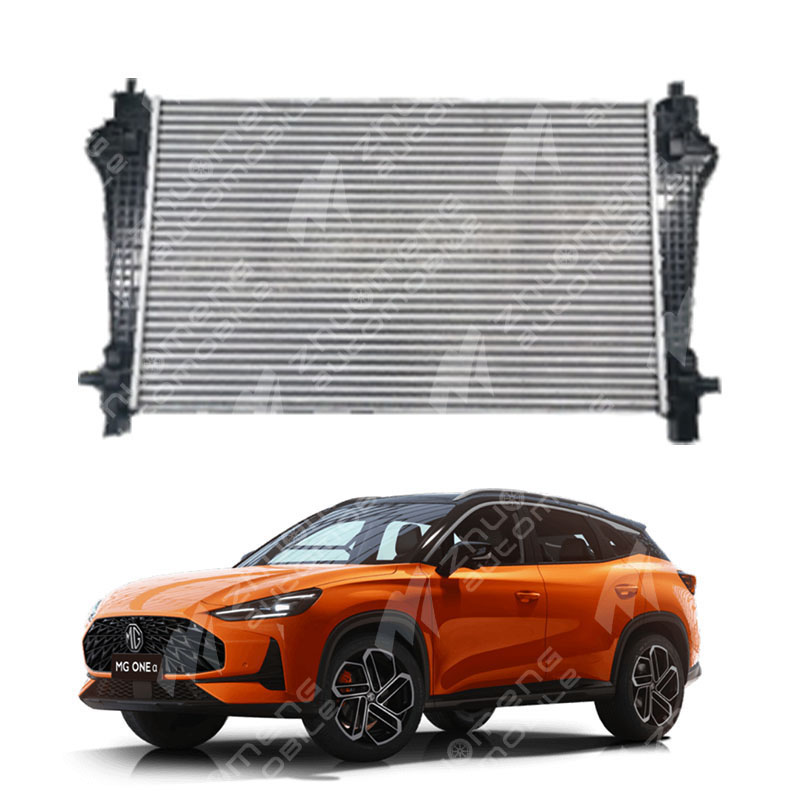

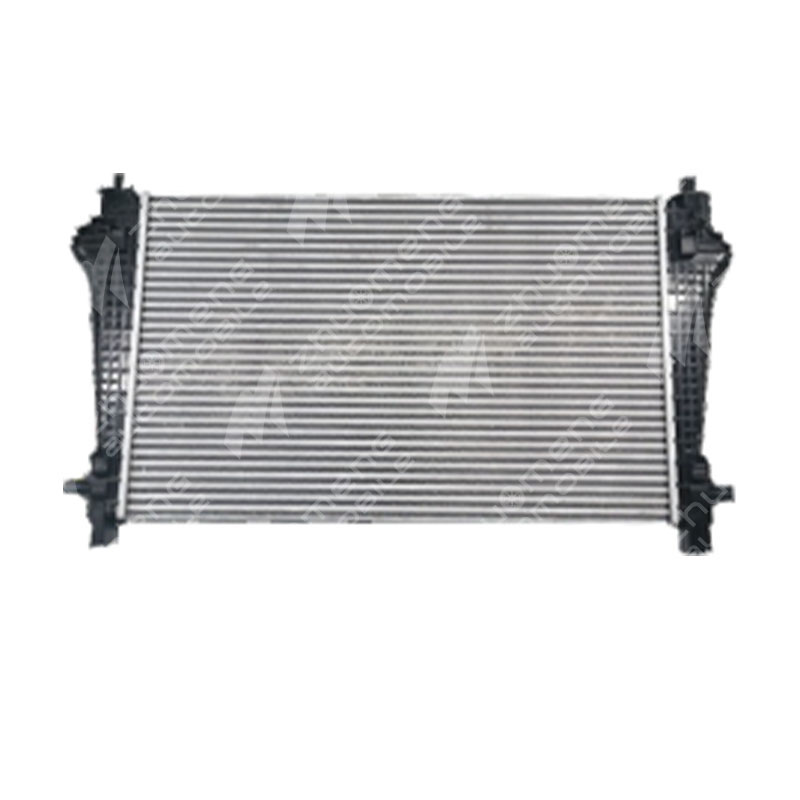

Intercooler - Turbocharged accessory.
Intercoolers are generally only seen in cars equipped with superchargers. Because the intercooler is actually a component of turbocharging, its role is to reduce the high temperature air temperature after supercharging, to reduce the heat load of the engine, increase the intake volume, and then increase the power of the engine. For the supercharged engine, the intercooler is an important component of the supercharging system. Whether it is a supercharged engine or a turbocharged engine, it is necessary to install an intercooler between the supercharger and the intake manifold. The following takes the turbocharged engine as an example to briefly introduce the intercooler.
One of the reasons why turbocharged engines have more power than ordinary engines is that their air exchange efficiency is higher than the natural intake of ordinary engines. When the air enters the turbocharger, its temperature will rise significantly, and the density will become smaller accordingly. The intercooler plays the role of cooling the air, and the high-temperature air is cooled by the intercooler and then enters the engine. If the lack of an intercooler and let the pressurized high temperature air directly into the engine, it will cause the engine to knock or even damage the flame.
An intercooler is usually found on a turbocharged car. Because the intercooler is actually a supporting part of the turbocharger, its role is to improve the air exchange efficiency of the turbocharged engine.
The difference between an intercooler and a radiator:
1. Essential differences:
The intercooler is actually a component of turbocharging, and its role is to reduce the high temperature air temperature after supercharging to reduce the heat load of the engine, increase the intake volume, and then increase the power of the engine. For the supercharged engine, the intercooler is an important component of the supercharging system. Radiator is an important and basic component of hot water (or steam) heating system.
2. Different categories:
1, the intercooler is generally made of aluminum alloy material. According to the different cooling medium, common intercoolers can be divided into two types: air-cooled and water-cooled. Radiators are divided into radiating radiators and convective radiators according to heat transfer methods.
2, the convective heat dissipation of the convective radiator accounts for almost 100%, sometimes called "convector"; Relative to convective radiators, other radiators dissipate heat by convection and radiation at the same time, sometimes called "radiators".
3, according to the material is divided into cast iron radiator, steel radiator and other materials of radiator. Other materials include radiators made of aluminum, copper, steel-aluminum composite, copper-aluminum composite, stainless steel aluminum composite and enamel materials.
How to clean the intercooler
Cleaning The intercooler is an important maintenance step designed to ensure its efficient operation and prevent engine performance degradation. The main function of the intercooler is to reduce the intake temperature of the turbocharged engine, thereby improving the efficiency and performance of the engine. Because the intercooler is located in the front of the vehicle, it is susceptible to contamination by dust, dirt and other debris, so regular cleaning is necessary.
Overview of cleaning procedures
external cleaning : use the water gun with low pressure to wash slowly from top to bottom or from bottom to perpendicular to the plane of the intercooler. Avoid oblique flushing to prevent damage to the intercooler.
internal cleaning : Add an aqueous solution containing 2% soda ash into the intercooler, fill it up and wait 15 minutes to check whether there is leakage. If there is no leakage, rinse until clean.
Inspection and repair : During the cleaning process, check the intercooler for any damaged or blocked parts, and repair with the appropriate tools if necessary.
reinstallation : Reinstall the intercooler and its connectors in the reverse sequence before removal, ensuring that all pipes and connectors are securely installed without leakage.
Recommended cleaning frequency
Exterior cleaning : Quarterly or semiannual exterior cleaning is recommended, especially more frequently in dusty or muddy environments.
internal cleaning : Generally every year or engine overhaul, welding repair water tank at the same time for internal cleaning.
Precautions
Safety first : During the cleaning process, ensure that the engine has been cooled to avoid burns and damage to other parts.
Tools : prepare required tools and materials, including cleaning agents, cleaning tools, and protective tools.
Record the installation position : During the disassembly process, remember the installation positions of each component for correct reinstallation.
Through the above steps and methods, the intercooler can be effectively cleaned to ensure its normal operation, thereby improving the performance and efficiency of the engine.
