What is the role of automotive camshaft sensor
Camshaft position sensor plays a crucial role in the automobile engine, the main function is to collect the camshaft position signal and input it to the electronic control unit (ECU) in order to determine the ignition time and fuel injection time. By detecting the rotation position of the camshaft, the sensor determines the opening and closing time of the valve, thus achieving precise control of the engine.
The working principle of the camshaft position sensor is based on electromagnetic induction or photoelectric induction technology. When the camshaft rotates, the sensor detects a bump or notch in the camshaft and generates a corresponding electrical signal. After receiving these signals, the ECU determines the ignition time and fuel injection time through calculation and processing, so as to achieve accurate control of the engine.
The accuracy and reliability of camshaft position sensors are critical to engine performance and fuel economy. If the sensor fails, it can lead to inaccurate ignition, decreased fuel economy, and possibly even an engine that does not function properly. Therefore, regular inspection and maintenance of the camshaft position sensor is very important.

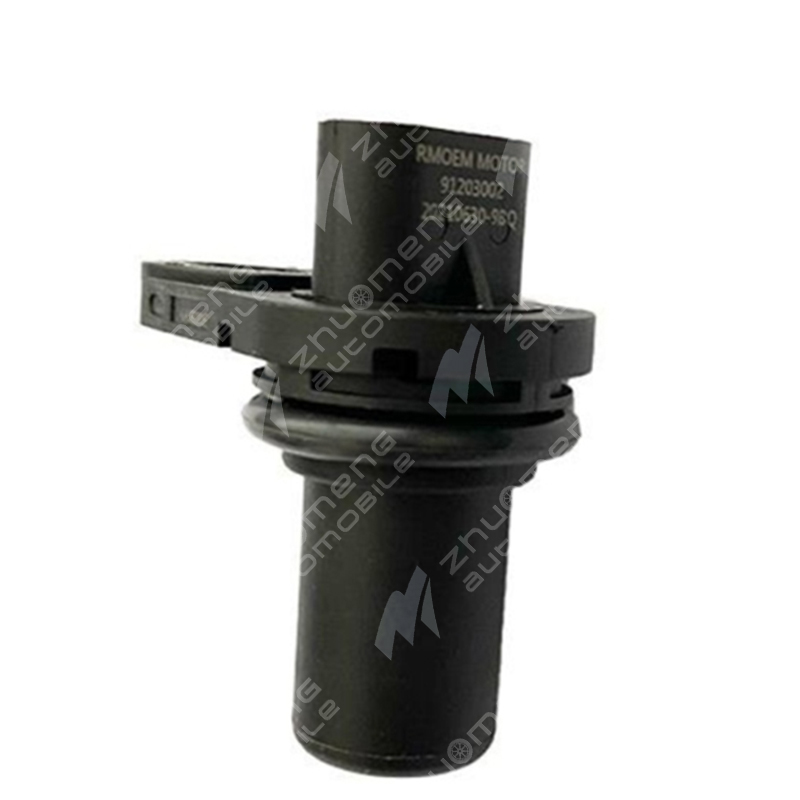

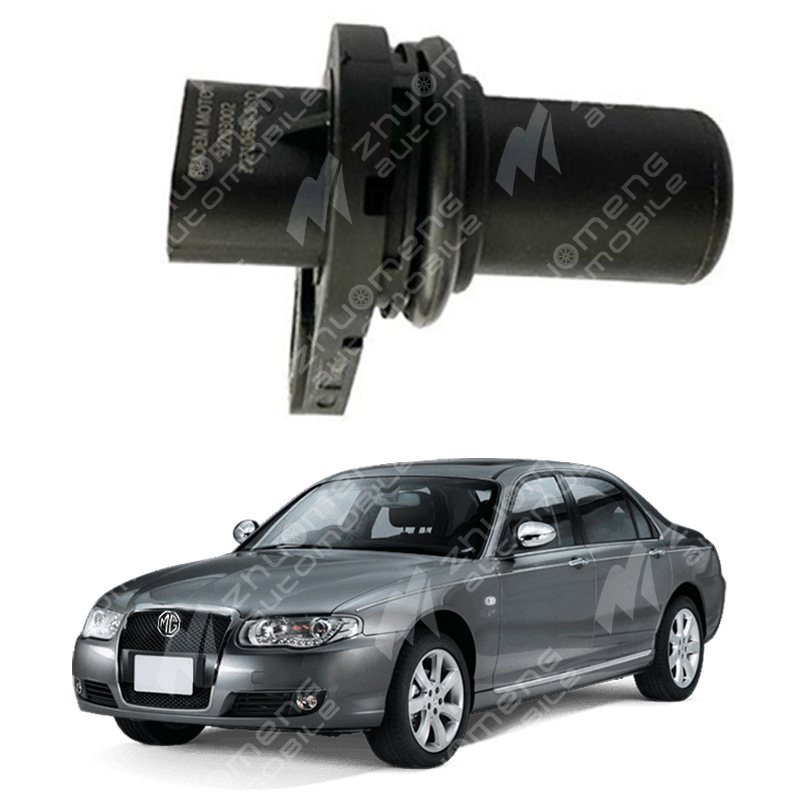

camshaft sensor is an important automobile part, mainly used to detect the camshaft position and speed, to ensure the normal operation of the engine. Camshaft Sensor, also known as Camshaft Position Sensor (CPS) or Cylinder Identification Sensor (CIS), its core function is to collect position signals of the valve camshaft. These signals are fed into the electronic control Unit (ECU). From these signals, the ECU is able to identify the compression TDC of cylinder 1 for sequential fuel injection control, ignition time control and deflagration control .
Structure and working principle
There are many types of camshaft position sensors, including photoelectric and magnetic induction. Photoelectric sensor is mainly composed of signal disk, signal generator and distributor, and generates signal through light-emitting diode and photosensitive transistor. The magnetic induction type uses the Hall effect or the principle of magnetic induction to produce signals, which are usually divided into Hall type and magnetoelectric type .
Installation position
The camshaft position sensor is usually installed at the front end of the camshaft cover, opposite the front end of the intake and exhaust camshaft. This design ensures that the sensor can accurately collect the camshaft position signal .
Fault performance and impact
If the camshaft sensor fails, common symptoms include difficulty starting the vehicle, difficulty refueling or stalling when hot, increased fuel consumption, insufficient power and poor acceleration. These symptoms are caused by the ECU's inability to accurately control fuel injection and ignition timing .
