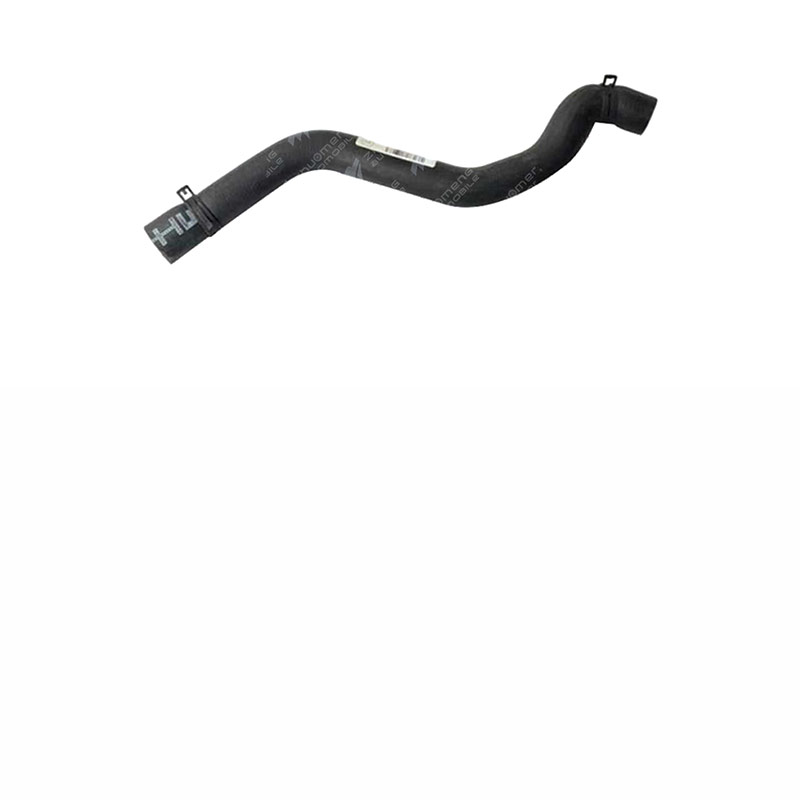

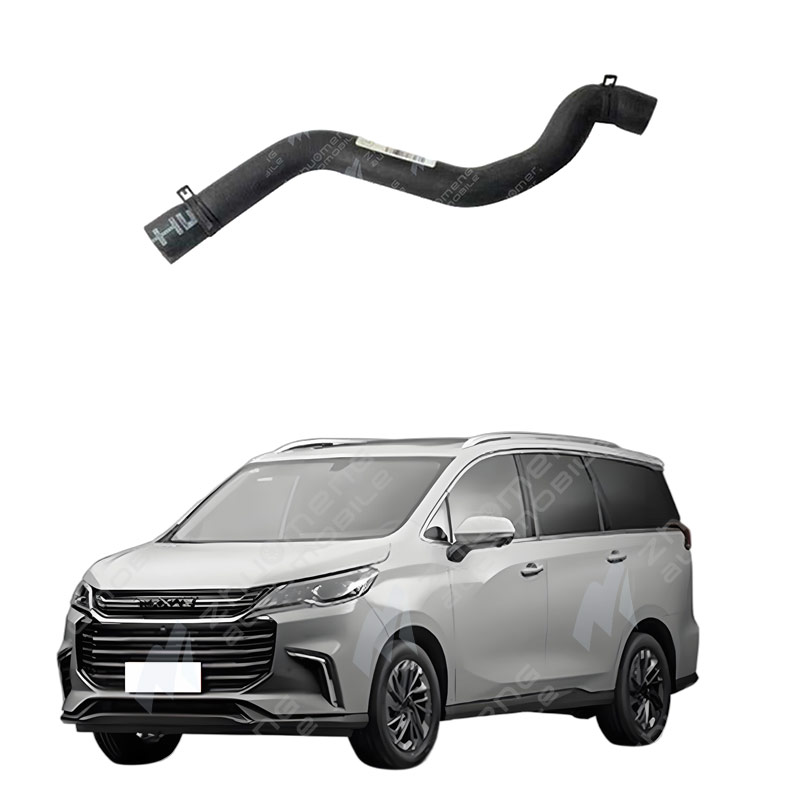

What is the car radiator inlet pipe
The intake pipe for a car radiator is usually located above the tank , also known as the upper pipe. The water inlet pipe connects the engine water pump with the engine water channel to provide the coolant circulating flow channel .
The main function of the automobile radiator is to absorb the heat generated by the engine through the coolant, and then distribute it through the radiator to maintain the normal working temperature of the engine. The coolant circulates through the engine, absorbing and carrying away the heat generated by the engine, and then cooling through the radiator. As a part of the cooling system, the water inlet pipe ensures that the coolant can flow smoothly into the engine to achieve the cooling effect .
In addition, car radiators usually come in two materials: aluminum and copper. Aluminum radiators are widely used in passenger cars because of their lightweight advantages, while copper radiators perform well in large commercial vehicles .
The main function of the automobile radiator inlet pipe is to drive the coolant to heat the engine, ensure the circulation of the coolant in the cooling system, so as to take away the heat generated by the engine and maintain the normal working temperature of the engine .
The radiator inlet pipe connects the engine water pump to the engine water channel to provide circulation for the coolant flow. The coolant circulates in the engine, absorbs and carries away the heat generated by the engine, and then cools through the radiator, and finally returns to the engine for another cycle .
If the water inlet pipe of the radiator leaks or is blocked, the normal operation of the cooling system may be affected, and the engine may overheat, or even damage .
In addition, the design and material of the radiator inlet pipe also have an important impact on the cooling effect. For example, a radiator outlet hose helps the radiator to dissipate heat from the engine, ensuring a smooth flow of coolant and heat .
In winter maintenance, adding high-quality antifreeze can prevent icing, protect the normal work of the pump, while cleaning the cooling system can remove scale and rust, improve the heat dissipation effect .
The main reasons for the failure of the inlet pipe of the automobile radiator include the coolant level is too low or deteriorated, the water pump is not working properly, the thermostat is faulty, and the radiator is blocked . These problems will lead to poor coolant circulation, which will affect the heat dissipation performance and the normal operation of the engine .
Fault manifestation
coolant level is too low : If the coolant level is too low, it will cause poor circulation and the inlet pipe may not be hot.
coolant deterioration or foul : deteriorated coolant will reduce its thermal conductivity.
pump damaged or not working normally : The pump is a key part of the coolant circulation, if the pump is damaged or not working normally, it will lead to the cooling liquid can not be effectively circulated.
thermostat fault : The thermostat controls the coolant circulation. If the thermostat is faulty, the water inlet pipe may not be hot.
heat sink blocked : The heat sink is blocked on the surface or inside, which affects the heat dissipation effect and causes the abnormal temperature of the water inlet pipe.
Detection method
Visual inspection : Check the outside of the radiator for obvious damage or traces of leakage.
pressure test : Test the tightness of the radiator by applying pressure to see if there is a leak.
temperature monitoring : Use a thermometer or infrared thermometer to monitor the temperature distribution of the radiator to determine whether the heat dissipation effect is uniform .
solution
Check and adjust coolant level and quality : Ensure coolant level is within normal range and replace deteriorated coolant.
Check the working condition of the pump : check whether the pump has signs of leakage or damage, manually turn the pump pulley to feel whether the resistance is normal.
Check the thermostat : remove the thermostat and put it in hot water to observe whether it is turned on.
Clean the radiator : Check whether there is debris or dirt on the surface of the radiator. Rinse the radiator with a high pressure water gun to remove the blockage .
