What is a car phase modulator
automobile phase modulator is a kind of equipment used for regulating and controlling automobile electrical system. Its main function is to ensure that various electrical equipment of automobile can work normally. By changing the parameters of the resonant loop, the phase shift occurs when the carrier signal passes through the resonant loop, thus forming the phase modulation wave .
The working principle of automobile phase modulator
The automobile phase modulator uses the modulating signal to change the parameters of the resonant loop directly, so that the carrier signal can generate phase shift when passing through the resonant loop and form a phase modulating wave. This working principle enables the phase modulator to adapt to different electrical requirements by adjusting the phase under different working conditions.
Application scenarios and importance of automotive phase modulator
Automobile phase modulator plays a vital role in automobile electrical system. It can ensure the coordination between the battery and the generator, prevent the battery from overdischarging or the generator from overcharging, so as to protect the battery and the generator from damage. In addition, the phase modulator can also stabilize the output voltage of the generator by adjusting the magnetic field strength to ensure the stable operation of the vehicle's electrical system .
The main function of the automobile phase modulator is to use the modulated signal to directly change the parameters of the resonant loop, so that the phase shift of the carrier signal through the resonant loop is generated and the phase modulation wave is formed.
Specifically, the phase modulator modulates the signal by changing the parameters of the resonant loop so that the phase of the signal changes when it passes through the resonant loop.
The working principle of the phase modulator
The working principle of the phase modulator is to change the inductance, capacitance and other parameters of the resonant loop, so that the phase of the signal changes when it passes through these loops. This phase change can be measured or controlled to achieve the modulation and demodulation of the signal.
Application scenario of phase modulator
Phase modulator is widely used in communication, radar, navigation and other fields. In the communication system, the phase modulator can modulate the information to the carrier signal to realize the transmission of information. In radar system, the phase modulator can control the phase of radar signal to achieve accurate target detection and location. In addition, phase modulators are used in a variety of electronic devices for precise signal processing and control.

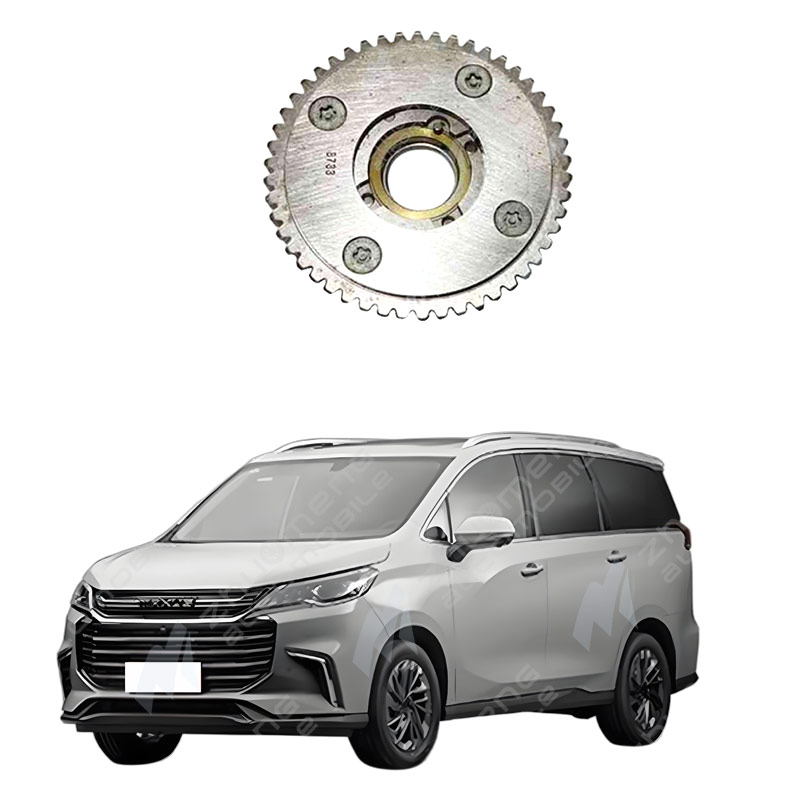

automotive phase modulator failure usually refers to the failure of the engine intake phase regulator. The intake phase regulator precisely controls the intake phase by changing the position of the intake camshaft relative to the crankshaft through a hydraulic or electric drive mechanism. Its function is to advance the closing time of the intake valve under low speed or low load conditions to form a shorter intake stroke, enhance the swirl and roll effect in the cylinder, and improve the combustion stability; Under high speed or high load condition, delay the closing time of the intake valve, increase the intake stroke length, and cooperate with later injection time to improve the engine power output .
Fault symptoms and causes
engine performance degradation : the failure of the intake phase regulator will lead to insufficient engine torque output at low speed and decreased power at high speed, which will affect the performance of vehicle acceleration and high-speed driving.
Reduced fuel economy : Due to inadequate mixture combustion, fuel consumption increases, resulting in higher fuel consumption.
emission problem : incomplete combustion will lead to an increase in black smoke in the tail gas and excessive emissions.
Fault light on : Some models of ECUs monitor the status of the intake phase regulator and in the event of a failure, a fault light on the dashboard will light up.
Diagnostic method
Read the trouble code : Use a professional automotive diagnostic tool to read the trouble code in the ECU to determine if it is an intake phase regulator fault.
Check the hydraulic or electric drive mechanism : check the hydraulic system or electric drive mechanism is working normally, there is no oil leakage or circuit problems.
Measuring the inlet camshaft position : Use professional tools to measure the inlet camshaft position is correct, determine whether the regulator is in the normal working range.
Maintenance proposal
Replace the regulator : If the regulator is damaged, you need to replace it with a new regulator and make sure that the new regulator matches the original model.
Cleaning or replacing hydraulic system components : If it is a hydraulic system problem, cleaning or replacing related components may solve the problem.
Check and repair circuit problems : If it is a circuit problem, check and repair circuit connections and replace damaged wiring or components if necessary.
