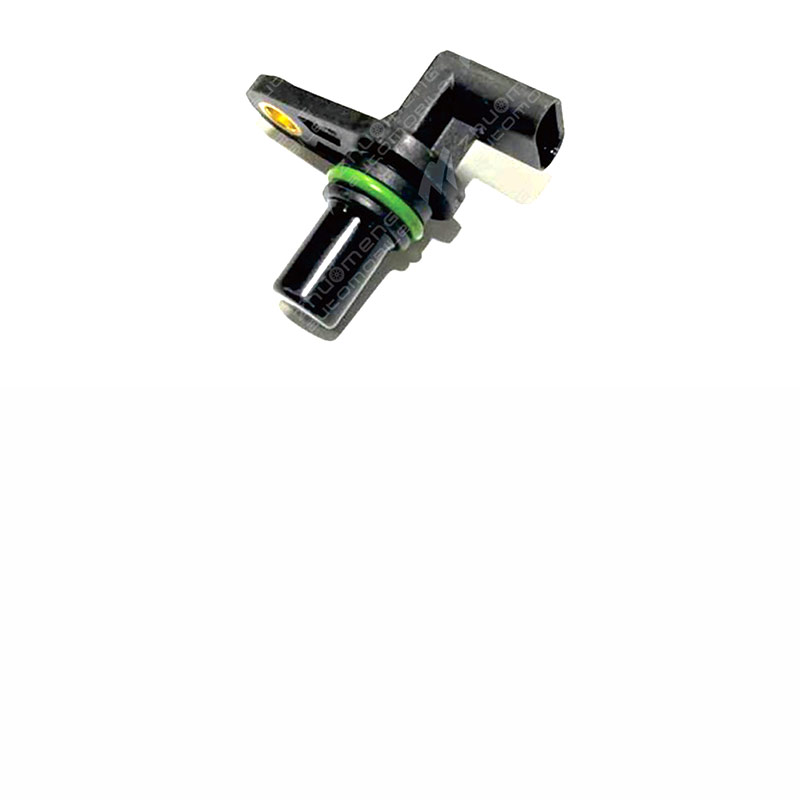

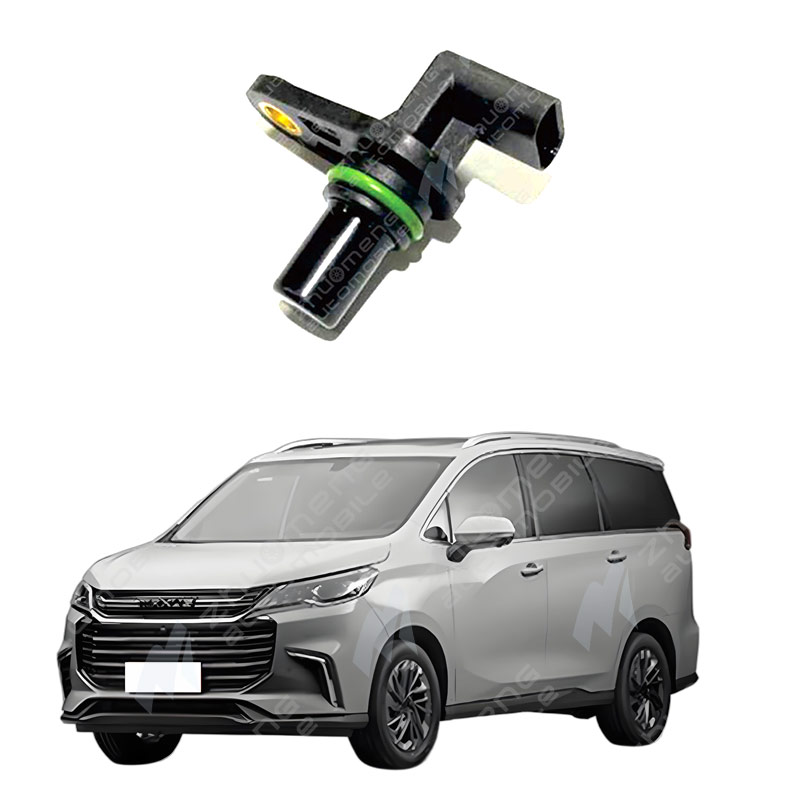

What is the camshaft position sensor
Camshaft Position Sensor (CPS) is an important automotive component, mainly used to collect the position signal of the valve camshaft and input it to the electronic control unit (ECU), so that the ECU can identify the compression top center of cylinder 1. Thus, sequential fuel injection control, ignition time control and deflagration control .
Definition and function
Camshaft position sensor is also known as cylinder identification sensor (CIS) or synchronization signal sensor, its core function is to monitor the movement of the camshaft to ensure the efficient operation and performance of the engine. The sensor senses the change of the camshaft in different positions to provide the necessary signals for engine management, supporting timing control, fuel injection control and dedetonation management strategies .
Working principle and type
The working principle of camshaft position sensor usually includes two types: photoelectric type and magnetic induction type:
Photoelectric : The position change of the camshaft is sensed through the light transmission hole in the signal disk and the photosensitive transistor.
magnetic induction : Using Hall effect or the principle of magnetic induction to detect the position of the camshaft by sensing the change of magnetic field.
Fault impact and maintenance methods
When the camshaft position sensor fails, the engine may exhibit problems such as difficulty starting, erratic idle speed, reduced power, increased fuel consumption and even vehicle shake . In order to determine the working status of the sensor, you can use the multimeter diode gear to detect its pin definition .
When the camshaft position sensor is broken, it will have a negative impact on the operation of the car in many aspects, as follows:
Ignition difficulty : The camshaft position sensor is responsible for providing the position signal of the camshaft to the electronic control Unit (ECU) to determine the ignition time. If the sensor is damaged, the ECU cannot receive accurate position signals, which may lead to inaccurate ignition and difficulty in starting the engine.
reduced engine performance : Sensor failures can affect engine performance by preventing precise control of fuel injection and ignition timing. There may be a lack of acceleration, power decline and other conditions.
increased fuel consumption : Since the sensor cannot accurately detect the camshaft position, the engine operation may deviate from the optimal state, resulting in inadequate fuel combustion and increased fuel consumption.
exceeding emission : inadequate combustion will not only increase fuel consumption, but also lead to an increase in harmful substances in exhaust emissions, which may pollute the environment and affect the vehicle's passing emission testing.
Uneven engine operation : Sensor failure may cause the engine to vibrate or stall at idle, affecting the driving experience.
Engine fault light on : When the vehicle self-diagnosis system detects that there is a problem with the camshaft position sensor, the engine fault light will light up to remind the owner to check and repair in time.
Therefore, once the camshaft position sensor is found to have a problem, it is recommended to immediately go to a professional repair shop for inspection and replacement to ensure the normal operation of the car and driving safety.
