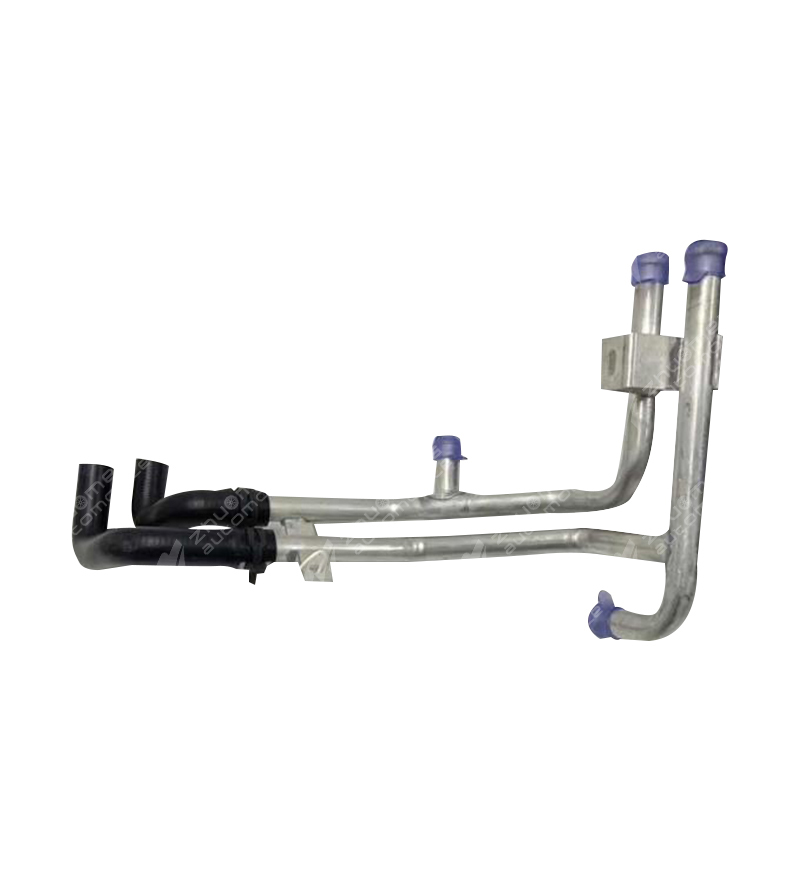

What is the automotive heating pipe assembly
Automotive warm air pipeline assembly refers to the key components of the automotive heating system, mainly including the heater core, water valve, blower and adjustment panel. These components work together to provide warm air inside the car.
Components and their functions
heater core : it is composed of water pipe and heat sink. The cooling water of the engine passes through the water pipe of the heater core and the heat sink, and then returns to the engine cooling system. The heater core is the core component of the warm air system, which is responsible for transferring the heat of the cooling water to the air .
water valve : used to control the water into the heater core, so as to adjust the heating system heating heat. You can control the opening of the water valve and adjust the warm air temperature by adjusting the adjusting rod or knob on the panel.
blower : composed of adjustable DC motor and squirrel cage fan, the main function is to blow air through the heater core to heat, and then send the hot air into the car. By adjusting the speed of the motor, the amount of air sent into the carriage can be controlled.
adjustment panel : used to control various Settings of the warm air system, including temperature, air volume, etc. You can easily adjust the operating status of the heating system by adjusting the knobs or buttons on the panel.
Working principle
The heat source of automobile warm air system mainly comes from engine cooling water. When the cooling water flows through the heater core, the heat is transferred to the air through the heat sink, and then the heated air is sent to the car through the blower, thereby increasing the temperature in the car. By adjusting the water valve and blower, the warm air temperature and air volume can be precisely controlled .
The main function of automobile warm air pipeline assembly is to provide warm air to the car, increase the temperature in the car, and remove the frost and fog on the window glass when necessary to ensure driving safety .
Working principle and structure
The automotive heating line assembly provides heat through the engine cooling system. After the engine starts, the water temperature gradually rises, and the warm air pipe is connected to the small water tank of the warm fan. After the temperature of the small water tank rises, the fan is used to distribute the temperature to the car. The temperature is controlled by a sensor . The whole system is composed of heater core, water valve, blower and regulating plate. The water valve controls the amount of water entering the heater core to adjust the system temperature; The blower controls the amount of air fed into the car by adjusting the speed of the motor.
Care and maintenance advice
In order to ensure the normal operation of the warm air pipeline assembly, it is recommended to check and replace the air filter regularly to prevent blockage affecting the air circulation and cooling effect . In addition, keep the condenser clean to ensure its heat dissipation effect, is also the key to maintain the cooling effect of air conditioning .
Through the above information, you can fully understand the role of the automotive heating pipeline assembly, working principle and maintenance suggestions.
