What is the beam vertical plate column of the car water tank
cross beam, vertical plate and column play an important role in the automobile structure, they together constitute the front support structure of the automobile, to ensure the stability and safety of the vehicle in operation.
Tank beam
The tank beam is a transversally arranged beam, perpendicular to the longitudinal beam, set along the short axis of the vehicle. They not only guarantee the torsional rigidity of the frame, but also withstand longitudinal loads, while supporting the main components of the car .
The tank beam is usually located at the front of the vehicle and carries components such as the tank and condenser, ensuring their stability and safety during operation .
Tank vertical plate

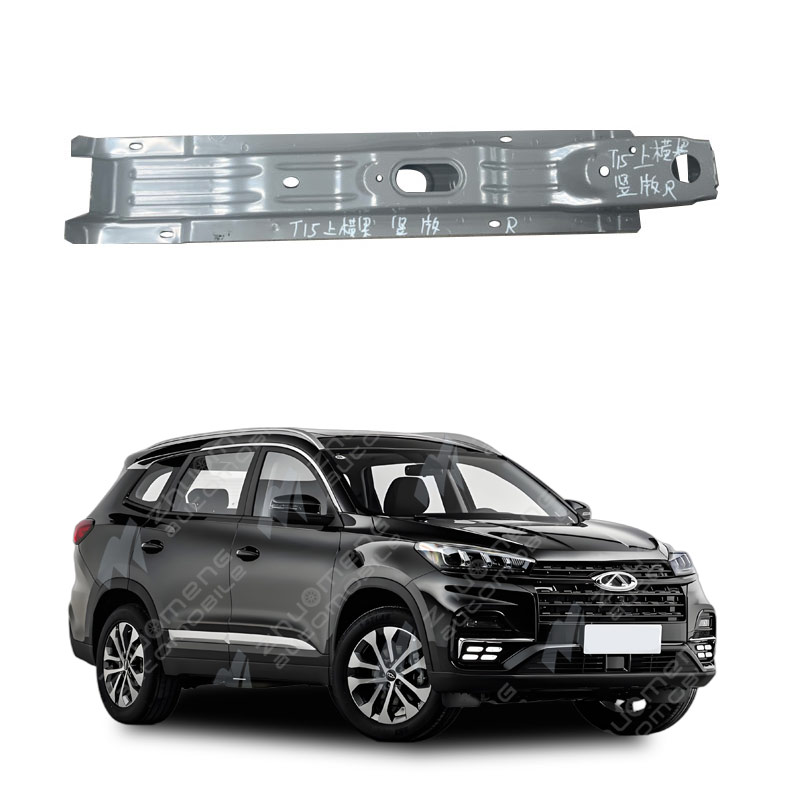

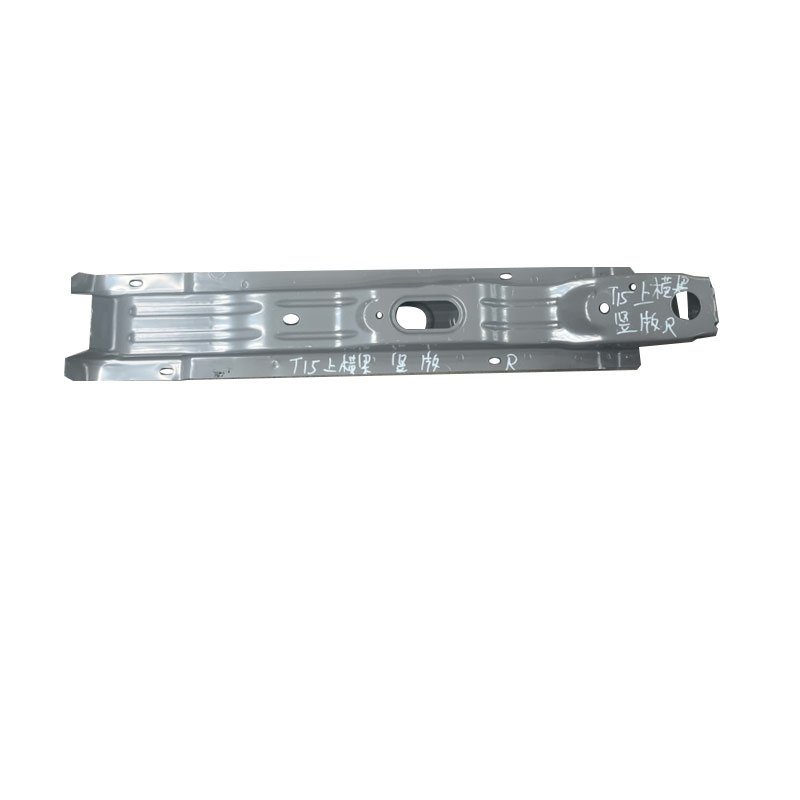

The water tank vertical plate is a vertically arranged plate, which is mainly used to fix and support the water tank frame. They are usually connected to longitudinal beams and beams to form the skeleton structure of the vehicle. The water tank vertical plate is made of various materials, including metal and resin, and its structural style also has various forms such as detachable and non-detachable .
Tank column
The tank column is a column-like structure that supports the tank frame, usually connected with the longitudinal beam and the beam to play a fixed and supporting role. The material and structural style of the water tank column are also various, the common metal water tank frame and resin water tank frame .
Material and structural styles
The material of the water tank frame is generally divided into three types: metal material, resin material and metal + resin material. Structural styles include non-detachable and detachable. The non-removable tank frame is usually made of metal and fixed by spot welding or bolted; The detachable water tank frame is mostly made of resin and is bolted to .
Repair and replacement
The maintenance and replacement of the tank frame needs to be carried out on a case-by-case basis. If the tank frame is severely damaged or affects driving safety, it may need to be replaced. The replacement process may require cutting the old frame and re-soldering, which will have an impact on the body structure .
Checking for deformation, signs of corrosion, the integrity of the original factory markings, and the normality of the mounting and positioning holes is key when assessing the need for replacement .
Automobile water tank beam, vertical plate and column play an important role in the automobile structure, the specific role is as follows :
Water tank beam : The main function of the water tank beam is to improve the installation stability of the water tank. By integrating into existing tank fixtures, beams can replace traditional support ribs and connection points, thereby simplifying construction, achieving lightweight, and increasing mounting space in the forward cabin .
In addition, the water tank beam also ensures the torsional stiffness of the frame and the longitudinal load, supports the key components of the vehicle, and ensures the stability and safety of the vehicle under various working conditions .
tank riser : The tank riser is usually combined with the tank beam to form the front end frame of the car. These vertical plates and beams form a rectangular frame for key components such as cooling modules, headlights and water tanks. The left and right water tank vertical plates are connected with the front end of the longitudinal beam on both sides of the body respectively, thus forming a complete automobile front end frame .
The vertical plate not only plays a supporting and fixing role, but also helps to disperse and withstand various forces and impacts from the front of the vehicle, protecting the key components of the vehicle from damage .
column : The column plays the role of support and connection in the automobile structure. They are usually located in the four corners of the vehicle and connect the various parts of the body, providing structural strength and stability. The design and material selection of the column is crucial to the crash safety performance of the vehicle, which can effectively absorb and disperse the impact energy in the event of a collision, and protect the safety of the occupants.
Maintenance and replacement suggestions :
Regular inspection : Check the state of the beam, vertical plate and column of the tank regularly to ensure that there are no cracks, deformation or loosening.
professional maintenance : If any damage or abnormality is found, stop using immediately and contact professional maintenance personnel for repair or replacement.
Use original parts : When replacing parts, try to use original parts to ensure the consistency of quality and performance.
