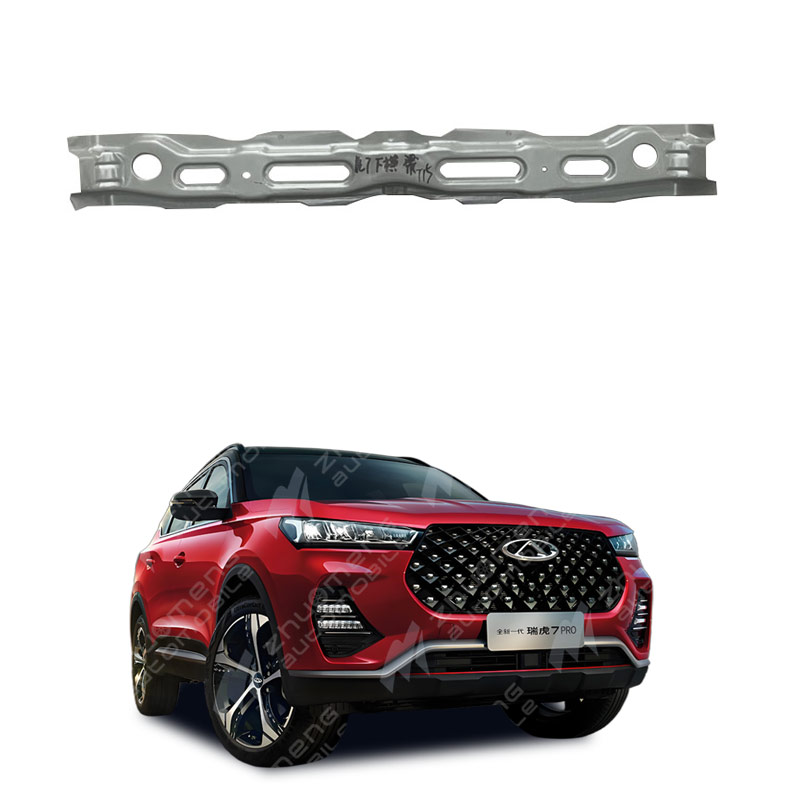

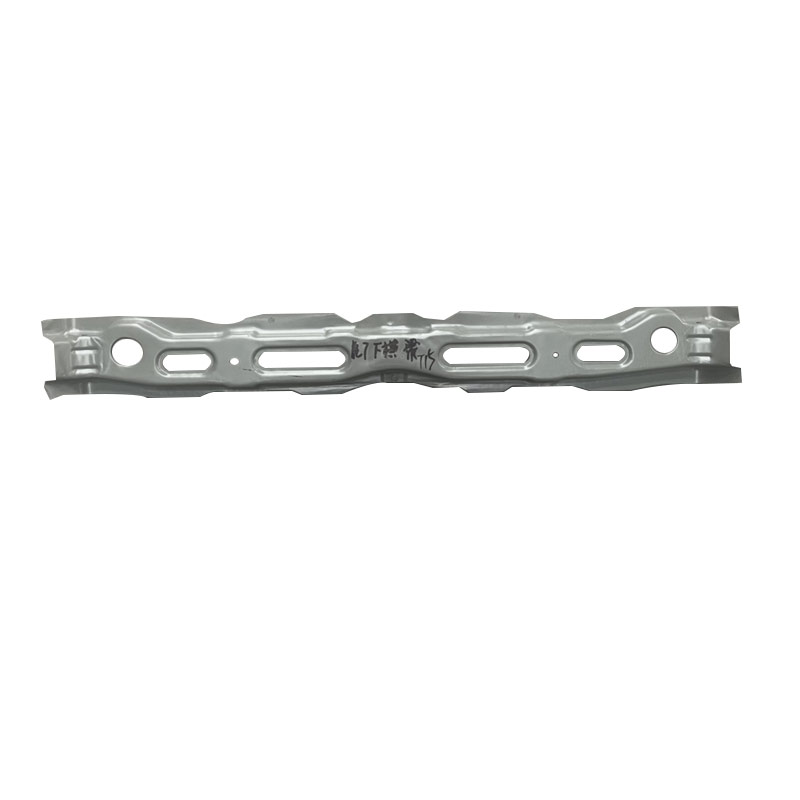

What is the upper beam assembly of the car water tank
The upper cross beam assembly of the automobile water tank is an important part of the automobile body structure, which is mainly used to fix the water tank and condenser to ensure that it maintains a stable position when the vehicle is running and plays its normal function . The upper beam assembly of the water tank is usually composed of the upper beam assembly, the lower beam assembly, the first vertical plate assembly, the second vertical plate assembly and the radiator assembly, which are connected to each other by welding or connecting points to form a stable structure .
Structural composition
The upper beam assembly of the water tank mainly includes the following parts:
upper beam assembly : located above the tank frame, play a supporting and fixing role.
lower beam assembly : located below the upper beam assembly and connected to the upper beam assembly by welding or connecting points.
The first vertical plate assembly and the second vertical plate assembly : respectively located on both sides of the upper beam assembly, play a strengthening and support role.
radiator assembly : located between the first vertical plate assembly and the second vertical plate assembly, connected to the upper beam assembly and the lower beam assembly by welding or connection points.
Function and effect
The main functions of the upper beam assembly of the tank include:
Fixing the water tank and condenser : Ensure that the water tank and condenser remain in a stable position and perform normal function when the vehicle is running.
improved installation stability : Through the optimization design, the support ribs and connection points in the tank fixing device are omitted, the structure is simplified, lightweight is realized, and the installation space of the front cabin is increased .
share pressure and weight : plays the role of protecting the water tank during the transportation and installation of the water tank, and shares the pressure and weight inside and outside the water tank to ensure the safety and stability of the water tank .
The main role of the upper beam assembly of the car water tank includes the following aspects :
Support water tank : the main function of the upper beam assembly of the water tank is to support the water tank, to ensure that the water tank is firmly fixed on the car body, to prevent its displacement or damage during the driving process.
absorb collision energy : in the front of the vehicle collision, the upper beam assembly of the water tank can absorb part of the collision energy, reduce the deformation of the body and the injury of the vehicle. This design helps improve the safety of the vehicle .
Simplified construction and lightweight : By integrating into existing tank fixtures, the tank upper beam assembly can replace traditional support ribs and connection points, thereby simplifying the structure and achieving lightweight. This design not only strengthens the beam itself, but also frees up valuable front cabin space, improving the vehicle's performance and practicality .
improve installation stability : By improving the installation stability of the upper beam assembly of the water tank, to ensure that the water tank can remain stable under various working conditions, so as to ensure the normal operation and life of the water tank .
the upper beam assembly failure of the automobile water tank is usually broken, deformed or damaged. These problems will lead to the unstable fixing of the water tank, which will affect the heat dissipation effect of the engine, and may even lead to more serious mechanical failures .
Fault cause
collision damage : In the event of a vehicle collision, the upper beam assembly of the water tank may suffer serious physical damage, resulting in fracture or deformation.
Long-term wear : over time, the beam assembly may crack or break due to aging or wear.
external environmental impact : Long-term exposure to damp or corrosive environment may lead to corrosion or rust of the beam assembly, affecting its structural strength and function .
Fault manifestation
unstable water tank : Damage to the beam assembly will cause the water tank cannot be firmly fixed on the vehicle, and may be shaken or loose.
poor engine heat dissipation : the water tank can not work normally affect the heat dissipation effect of the engine, which may cause the engine to overheat.
mechanical fault : Long-term poor heat dissipation may cause damage to the engine or other related components .
Maintenance proposal
replacement parts : If the beam assembly is seriously damaged, it is recommended to replace the new parts to ensure the normal operation and safety of the vehicle.
professional maintenance : It is recommended to go to a professional auto repair shop for inspection and maintenance to ensure the quality of maintenance.
