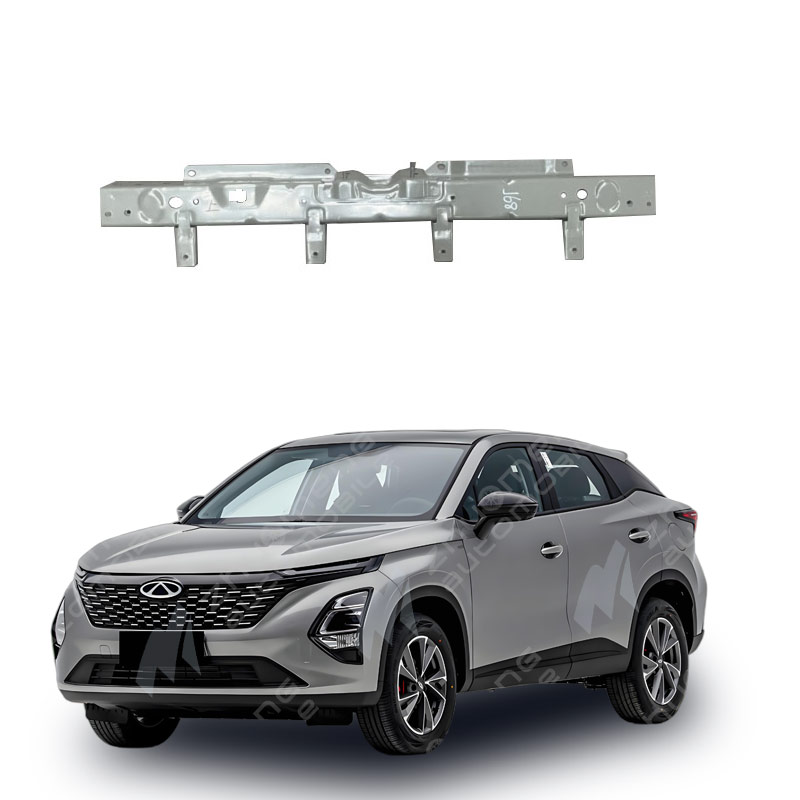

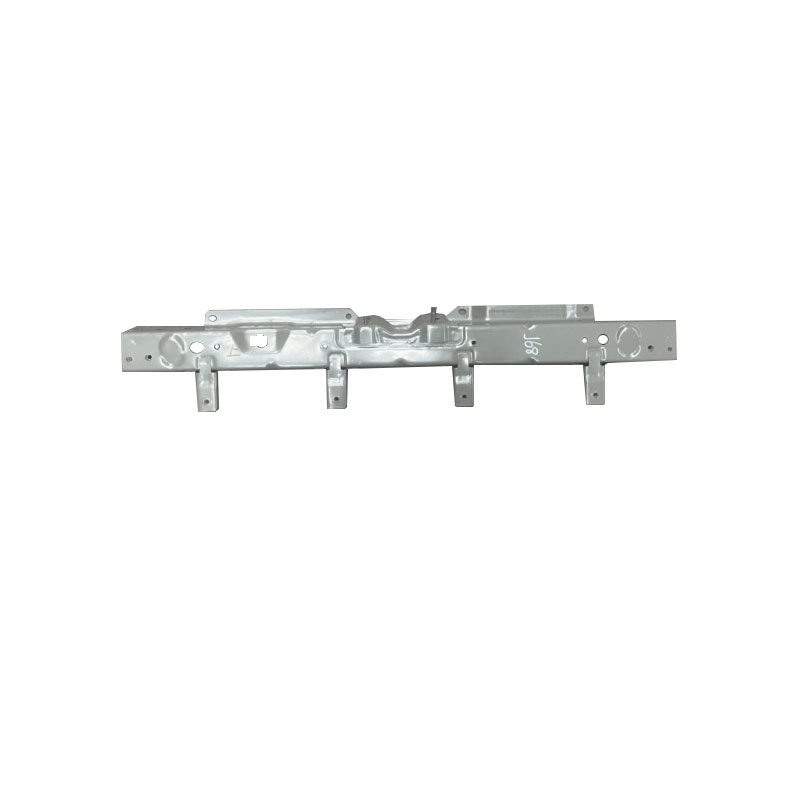

What is the upper beam assembly of the car water tank
The upper cross beam assembly of the automobile water tank is an important part of the automobile body structure, mainly used to connect and support the water tank, radiator and other parts, to ensure its stable work and protect these parts from damage in a collision. The upper beam assembly of the water tank usually includes the upper beam assembly, the lower beam assembly, the first vertical plate assembly, the second vertical plate assembly and the radiator assembly, etc. These parts are integrated together by welding or connecting points to form a stable structure .
Structural composition
The upper beam assembly of the water tank is mainly composed of the following parts:
upper beam assembly : located above the water tank frame, both ends are respectively connected with the first vertical plate assembly and the second vertical plate assembly.
lower beam assembly : located under the upper beam assembly, both ends are respectively connected with the first vertical plate assembly and the second vertical plate assembly.
The first vertical plate assembly and the second vertical plate assembly : located on both sides of the upper beam assembly and the lower beam assembly, play the role of support and connection.
radiator assembly : located between the first vertical plate assembly and the second vertical plate assembly, both ends are connected with the upper beam assembly and the lower beam assembly .
Function and effect
The main functions and functions of the upper beam assembly of the water tank include:
ensures installation stability : By integrating into existing tank fixtures, the beam can replace traditional support ribs and connection points, simplify the structure, achieve lightweight, and strengthen the beam itself .
Protect water tank and other parts : in the case of collision, the upper cross beam assembly of the water tank can protect the front parts such as the water tank and radiator from deformation, absorb the collision energy, and ensure the safety of the vehicle .
simplified installation and maintenance : By adding the radiator mounting bracket, the problem that the front bumper assembly and the radiator are installed on the upper beam of the water tank is solved, and the installation and maintenance process is simplified.
The main role of the upper beam assembly of the car water tank includes the following aspects :
supporting water tank : the main function of the upper cross beam assembly of the water tank is to support the water tank, to ensure that the water tank is firmly fixed on the car body, to prevent its displacement or damage during the driving .
absorption collision energy : in the front collision of the vehicle, the upper beam assembly of the water tank can absorb part of the collision energy, reduce the deformation of the body, so as to reduce the injury to the occupants .
improved installation stability : By integrating into existing tank fixtures, the beam can replace the traditional support ribs and connection points, simplify the structure, achieve lightweight, and improve the installation stability of the tank beam .
Simplified structure and lightweight : this design not only strengthens the beam itself, but also frees up valuable front cabin space and improves the vehicle's performance and practicability .
protection water tank : during the transportation and installation of the water tank, the upper cross beam assembly of the water tank plays a protective role to prevent the water tank from external impact and damage .
maintenance and replacement : due to the importance of the upper beam assembly of the water tank, once it is found damaged or deformed, it needs to be replaced in time. Regular inspection and maintenance is also very important to ensure the normal play of its functions and the safety of the vehicle .
