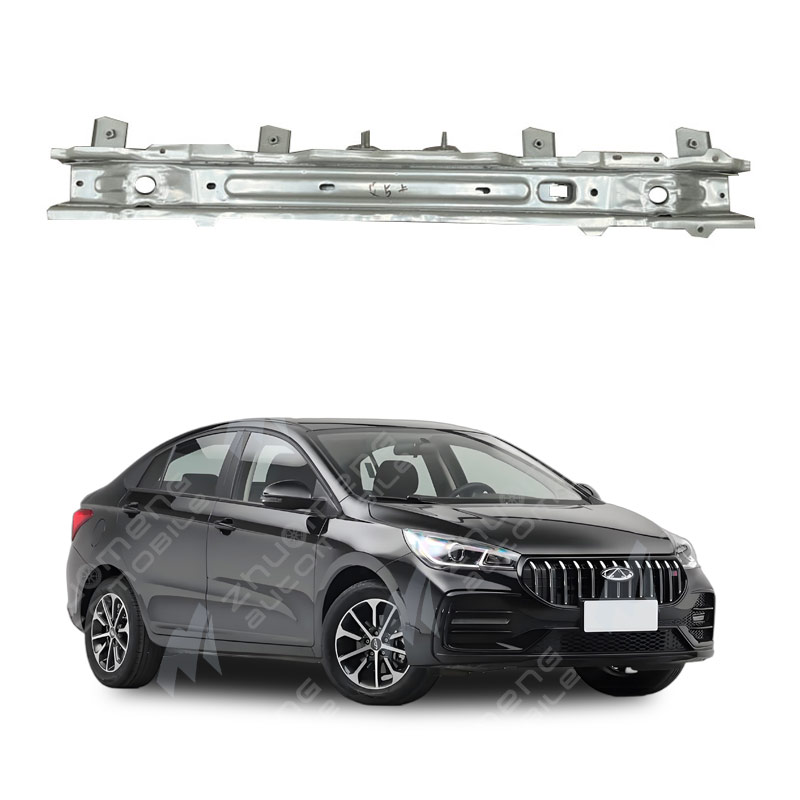

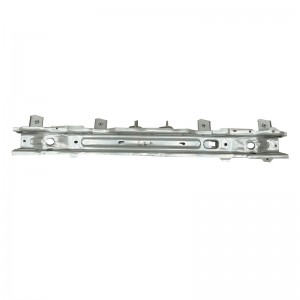

What is the upper beam assembly of the car radiator
The upper beam assembly of the automobile radiator is an important part of the automobile cooling system, its main function is to disperse and absorb the impact, and protect the safety of the occupants of the car. Beam assemblies are usually made of high-strength steel and are mostly rectangular or trapezoidal in shape, depending on the type and design of the vehicle .
Structure and function
The beam assembly is usually composed of multiple parts, including a first beam and two second beams. The first beam extends across the width of the vehicle, and two second beams are fixed on either side of the first beam. The second beam is composed of a top plate, a first stiffener and a second stiffener. These components are fixed and connected to form a closed force transmission path, thereby effectively improving the support of the beam assembly .
Materials and manufacturing processes
Car beams are usually made of high-strength steel, and the choice of this material not only improves the strength and durability of the beam, but also better absorbs and distributes the impact force in a crash, protecting the occupants .
Installation position and function
The beam assembly is located at the bottom of the car and is usually connected to the bumper, crash beam, and other body parts. In the event of a vehicle collision, the beam will absorb the impact force, preventing the collision energy from being transferred directly to the car, thus protecting the occupants from serious injury .
In addition, the design and material choice of the beam also affect the rigidity and weight of the vehicle, which in turn affects fuel efficiency and roadworthiness .
The main functions of the upper beam assembly of the automobile radiator include providing stable support, enhancing heat dissipation efficiency and safety . The beam assembly acts as a stable support in the radiator frame, connecting the two sides of the frame to ensure the stability and rigidity of the entire structure. In the process of car driving, especially on the bumpy road, the beam can effectively reduce the vibration and displacement of the radiator, so as to ensure the normal work of the radiator .
In addition, the design of the beam also helps to improve the heat dissipation efficiency. By rationally arranging the beam, the arrangement of the heat sink and the air flow channel can be optimized, so that the air can flow more smoothly through the radiator, thereby improving the heat dissipation effect. This is essential to prevent the engine from overheating and ensure that the car runs properly .
In the event of a collision, the beam can absorb part of the impact and protect the radiator from damage. This design not only improves the safety of the car, but also reduces the maintenance cost caused by accidents .
The failure of the upper beam assembly of the automobile radiator is usually manifested in the following situations:
Leakage : the beam assembly may leak due to aging or corrosion of the material, resulting in the loss of coolant, affecting the heat dissipation .
plugging : long-term lack of cleaning leads to accumulation of impurities and dirt, blocking the radiator, affecting the flow of coolant and heat dissipation .
deformation : in the collision accident, the beam assembly may be deformed, resulting in reduced heat dissipation area, affecting the heat dissipation effect .
Fault cause
The main causes of beam assembly failure include:
aging or corrosion : due to long-term use or the influence of external environment, the material of the beam assembly may age or corrode, leading to leakage or blockage .
collision accident : in the vehicle collision accident, the beam assembly may be damaged, resulting in deformation or damage .
long-term not cleaned : dirt accumulation inside and outside the radiator, leading to blockage, affecting the flow of coolant and heat dissipation .
Fault effect
Failure of the beam assembly can have a serious impact on the normal operation of the vehicle and the life of the engine:
engine overheat : due to poor heat dissipation effect, the engine may overheat, resulting in reduced performance and even damage .
excessive coolant temperature : Excessive coolant temperature can cause the engine to boil, further damage the engine and other components .
increase in maintenance cost : frequent maintenance and replacement of parts will increase the maintenance cost and affect the economy of vehicle .
Preventive measures and maintenance suggestions
In order to prevent and solve beam assembly failure, it is recommended to take the following measures:
regular inspection : regular inspection of the beam assembly status, timely detection and treatment of problems .
cleaning and maintenance : regularly clean the dirt inside and outside the radiator to ensure the smooth flow of coolant .
replacement of aging parts : timely replacement of aging seals and damaged parts to avoid leakage and blockage .
