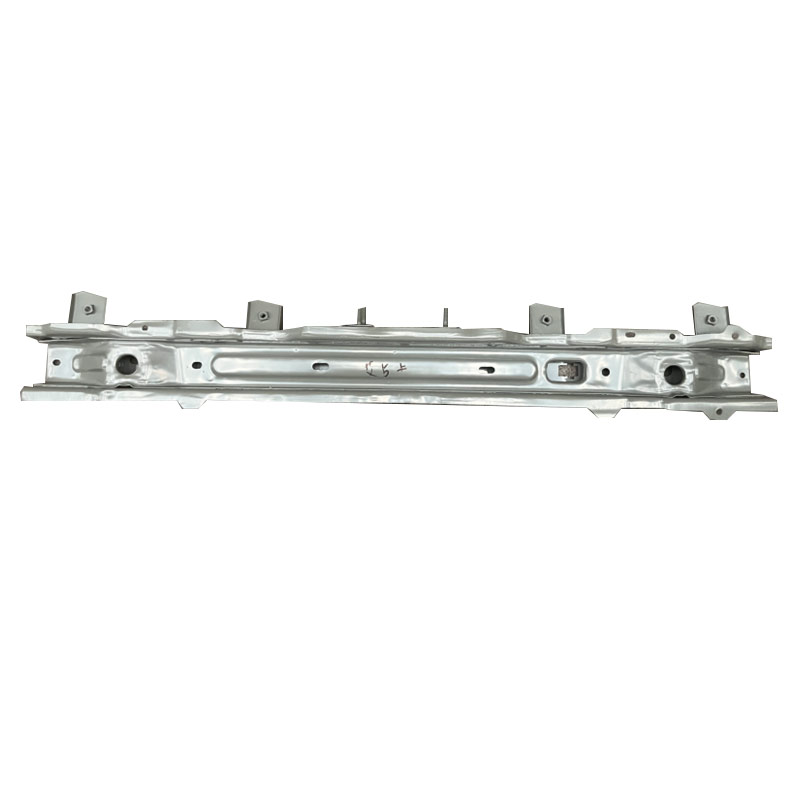

What is the upper beam assembly of the car radiator
auto radiator upper cross beam assembly is an important part of the automobile cooling system, its main function is to support and fix the radiator, to ensure its stability and durability on the vehicle.
Structure and function
The upper beam assembly of the radiator is usually composed of the following parts:
top plate : it is fixed and connected with the bottom plate of the body to provide the main support.
The first stiffener : sandwiched between the top plate and the second stiffener plate to enhance the stability of the overall structure.
the second stiffener : is fixed connected with the first stiffener plate and the top plate to form a closed force transmission path and improve the support of the beam assembly .
Materials and manufacturing processes
The upper beam assembly of the automobile radiator is usually made of high-strength steel, which can effectively disperse and absorb the impact force to protect the safety of the occupants of the car. The shape of the beam is mostly rectangular or trapezoidal, depending on the design and type of vehicle. They are held together by welding or other connections, ensuring that energy is effectively absorbed and dispersed in a collision .
Design and application
In terms of design, the beam assembly, through its structural characteristics, ensures that the force in the direction of the vehicle height forms a closed force transmission path, thereby improving the overall support and durability. This design not only improves the rigidity of the vehicle, but also optimizes fuel efficiency and driving performance .
In practical applications, the beam assembly is connected with other body parts such as bumpers and anti-collision beams to form a complete protection system .
The main functions of the upper beam assembly of the automobile radiator include providing stable support, enhancing heat dissipation efficiency and safety . The beam assembly usually includes a first beam and two second beams, which are fixed by connecting the top plate, the first stiffener plate and the second stiffener plate to form a closed force transmission path, thereby effectively improving the support of the beam assembly .
Specific role
provide stable support : The beam plays a stable support role in the radiator frame, connecting the two sides of the frame to ensure the stability and rigidity of the whole structure. In the process of car driving, especially on the bumpy road, the beam can effectively reduce the vibration and displacement of the radiator, so as to ensure the normal work of the radiator .
improve heat dissipation efficiency : through reasonable arrangement of the beam, you can optimize the arrangement of the heat sink and the air flow channel, so that the air can flow more smoothly through the heat sink, thereby improving the heat dissipation effect. This is essential to prevent the engine from overheating and ensure that the car runs properly .
Safety protection : in the event of a collision accident, the beam can absorb part of the impact and protect the radiator from damage. This design not only improves the safety of the car, but also reduces the maintenance cost caused by accidents .
